FT300 / 400-A
Compact and light weight
Lightweight portable fire pump designed for fast setup and reliable output.
'%3e%3cg%20transform='translate(1388%202192)'%3e%3cpath%20d='M7.59.59A2%202%200%201%201%209%204H0m10.59%2011.41A2%202%200%201%200%2012%2012H0m15.73-8.27A2.5%202.5%200%201%201%2017.5%208H0'%3e%3c/path%3e%3c/g%3e%3c/g%3e%3c/g%3e%3c/svg%3e)
Cooling system
Air-cooled
Pump model
Shibaura C505
Engine type
2-stroke gasoline engine
Max pressure
116 PSI (0.8 MPa)
Priming performance
1 m : 2.2 sec (FT300-A) 1 m : 3.5 sec (FT400-A1)
Discharge performance
150 GPM @ 72.5 PSI 84/87 GPM @ 116 PSI

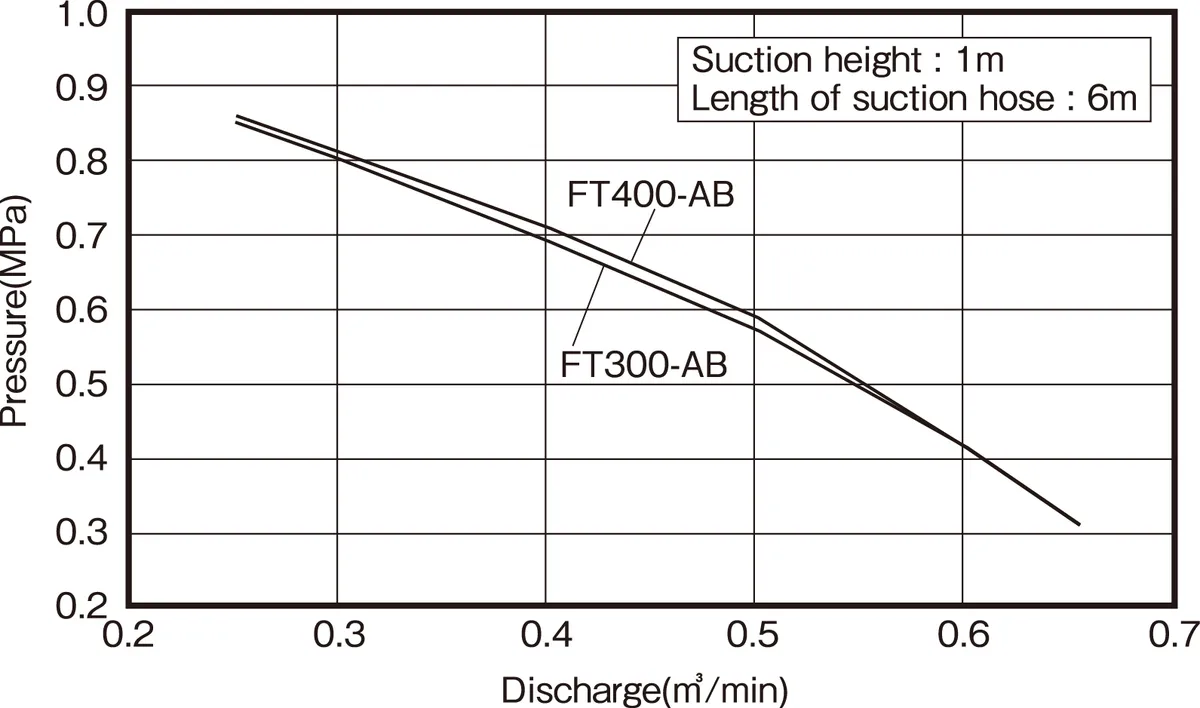

Performance Curve

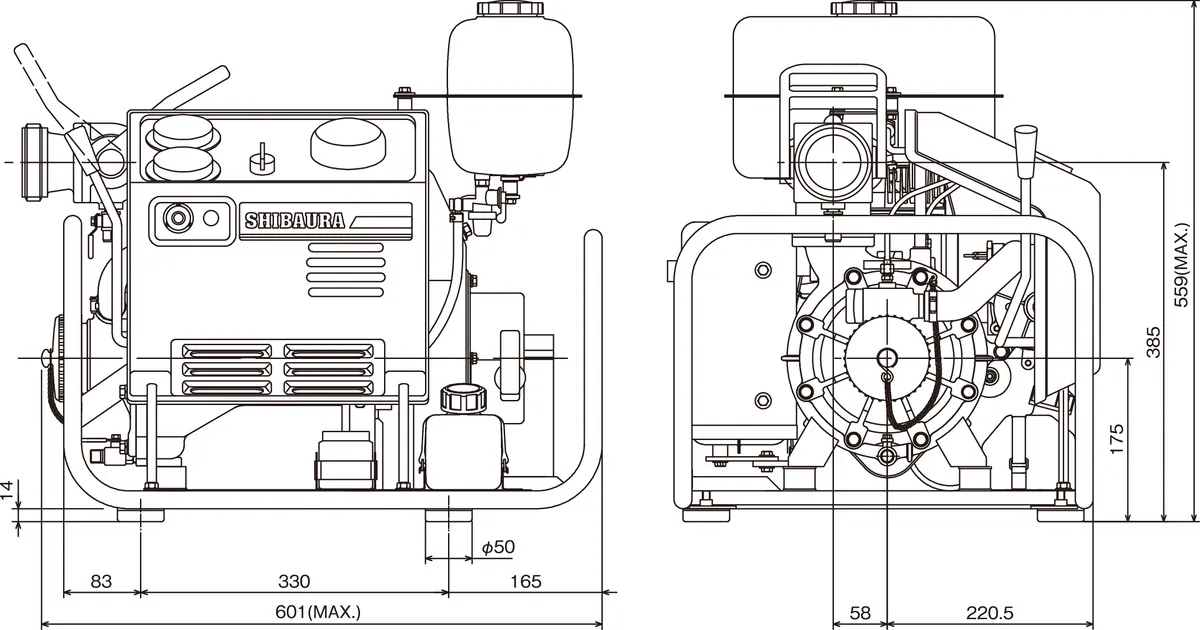

Dimensions
FT300-A Pump Operation
See the FT300-A in action with a full operation walkthrough.
Technical Specifications
The specifications procurement teams need to evaluate the FT300 / 400-A.
| Model | ||
|---|---|---|
| Specification | FT300-A | FT400-A1 |
| Overall Dimensions (L × W × H) | 24 x 18 x 20 in 601 x 463 x 515 mm | |
| Dry Weight | 97 lb 44 kg | 99 lb 45 kg |
| Pump | |||
|---|---|---|---|
| Specification | FT300-A | FT400-A1 | |
| Model | SHIBAURA C505 | ||
| Type | High pressure, single stage centrifugal pump | ||
| Discharge Performance | 72.5 psi (0.5 MPa)
1 m suction head (3.3 ft) | 150 gpm @ 72.5 psi, 3.3 ft 568 L/min | |
| 72.5 psi (0.5 MPa)
3 m suction head (9.8 ft) | 145 gpm @ 72.5 psi, 9.8 ft 550 L/min | 147 gpm @ 72.5 psi, 9.8 ft 556 L/min | |
| 116 psi (0.8 MPa)
1 m suction head (3.3 ft) | 84 gpm @ 116 psi, 3.3 ft 318 L/min | 87 gpm @ 116 psi, 3.3 ft 330 L/min | |
| 116 psi (0.8 MPa)
3 m suction head (9.8 ft) | 79 gpm @ 116 psi, 9.8 ft 300 L/min | 82 gpm @ 116 psi, 9.8 ft 309 L/min | |
| Priming performance at 1 m | 2.2 Seconds 2.2 Seconds (3.3 ft suction head) | 3.5 Seconds 3.5 Seconds (3.3 ft suction head) | |
| Discharge Diameter | 65 mm (JIS) | ||
| Suction Diameter | 65 mm (JIS) | ||
| Engine | ||
|---|---|---|
| Specification | FT300-A | FT400-A1 |
| Model | SHIBAURA E200 | |
| Type | Air cooled 2-stroke gasoline engine | |
| Cooling system | Air cooled type | |
| No of cylinder | 1 cylinder | |
| Fuel system | Auto choke carburetor | |
| Displacement | 200 cc 12.2 cu in | |
| Bore x Stroke | 68 mm x 55 mm 2.68 x 2.17 in | |
| Rated output | 11.8 hp 8.8 kW / 12 PS | |
| Starting | Electric starter & manual starter | |
| Fuel tank capacity | 1.06 gal 4.0 L | |
| Fuel Consumption | 1.43 gal/h 5.4 L/h | 1.48 gal/h 5.6 L/h |
| Fuel type | Regular unleaded gasoline | |
| Vacuum Pump | ||
|---|---|---|
| Specification | FT300-A | FT400-A1 |
| Type | 4-Vane eccentric rotary type | |
| Blade type | High strength carbon | |
| Maximum suction height | 29.5 ft 9 m | |
| Features | ||
|---|---|---|
| Specification | FT300-A | FT400-A1 |
| Shibaura Original 2 cycle Gasoline Engine | Yes | |
| Shibaura Original Centrifugal Pump | Yes | |
| Shibaura Original Vacuum Pump | Yes | |
| Alert Monitoring System | - | |
| Quick Discharge Valve | Yes | |
