FT510-A
Strong power with Shibaura's original air-cooled engine
Big-bore air-cooled performance with fast starting and quick valve control for demanding field use.
'%3e%3cg%20transform='translate(1388%202192)'%3e%3cpath%20d='M7.59.59A2%202%200%201%201%209%204H0m10.59%2011.41A2%202%200%201%200%2012%2012H0m15.73-8.27A2.5%202.5%200%201%201%2017.5%208H0'%3e%3c/path%3e%3c/g%3e%3c/g%3e%3c/g%3e%3c/svg%3e)
Cooling system
Air-cooled
Pump model
Shibaura B612B
Engine type
2-stroke gasoline engine
Max pressure
145 PSI (1.00 MPa)
Priming performance
1 m : 3.5 sec
Discharge performance
450 GPM @ 72 PSI 390 GPM @ 116 PSI
Compare this model within the air-cooled pumps and review the related operational scenario page as part of your selection process.

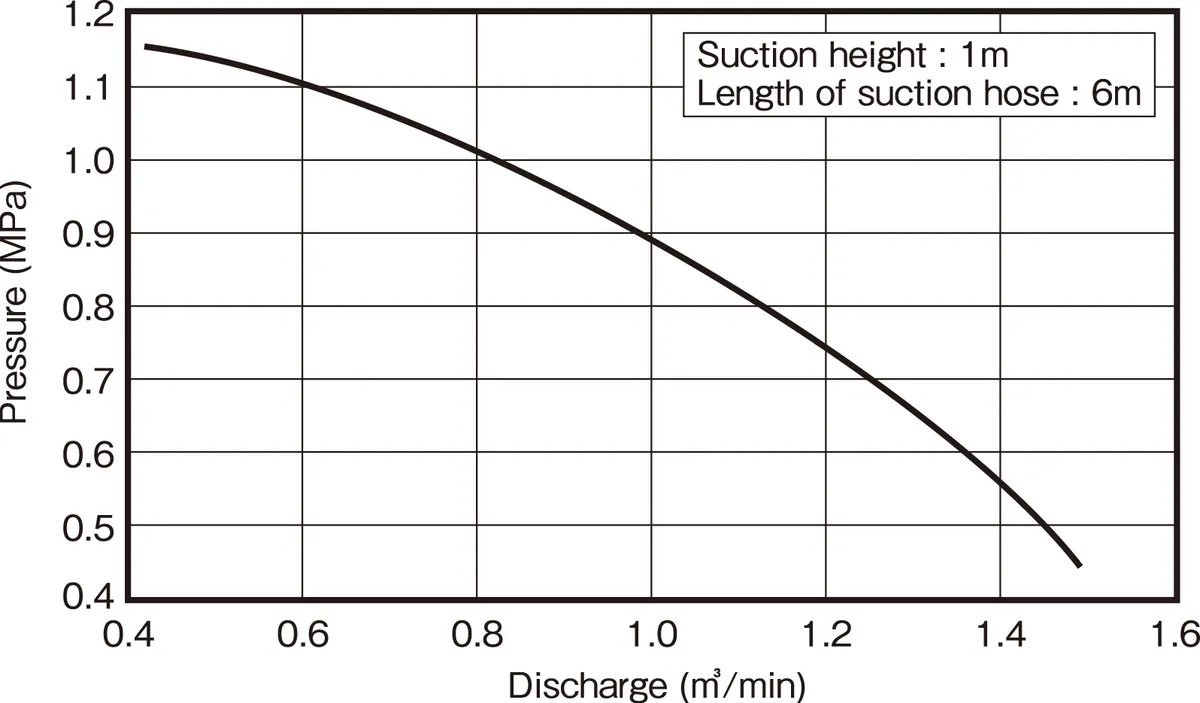

Performance Curve

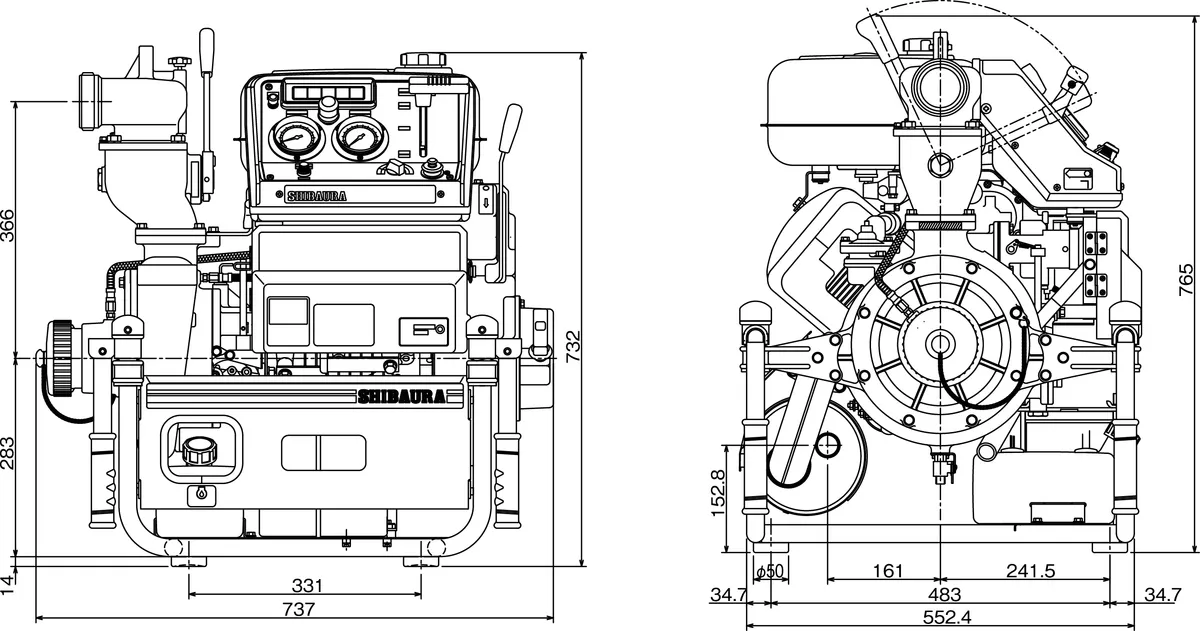

Dimensions
FT510-A Pump Operation
See the FT510-A in action with a full pump operation walkthrough.
Technical Specifications
The specifications procurement teams need to evaluate the FT510-A.
| FT510-A | |
|---|---|
| Overall Dimensions (L × W × H) | 29 x 22.5 x 29 in 737 x 572 x 740 mm |
| Dry Weight | 198 lb 90 kg |
| Pump | ||
|---|---|---|
| Model | SHIBAURA B612B | |
| Type | High pressure, single stage centrifugal pump | |
| Maximum Discharge
Performance *Independent test | 72 psi (0.5 MPa)
| 450 gpm @ 72 psi 1,703 L/min |
| 87 psi (0.6 MPa)
| 420 gpm @ 87 psi 1,590 L/min | |
| 116 psi (0.8 MPa)
| 390 gpm @ 116 psi 1,476 L/min | |
| Discharge Performance Manufacturer standard | 72.5 psi (0.5 MPa)
1 m suction head (3.3 ft) | 383 gpm @ 72.5 psi 1,450 L/min |
| 72.5 psi (0.5 MPa)
3 m suction head (9.8 ft) | 379 gpm @ 72.5 psi 1,435 L/min | |
| 145 psi (1.0 MPa)
1 m suction head (3.3 ft) | 219 gpm @ 145 psi 830 L/min | |
| 145 psi (1.0 MPa)
3 m suction head (9.8 ft) | 209 gpm @ 145 psi 790 L/min | |
| Priming performance at 1 m | 3.5 Seconds 3.5 Seconds (3.3 ft suction head) | |
| Discharge Diameter | 2.5 in NH | |
| Suction Diameter | 4 in NH | |
*Performance values represent maximum output under standard factory test conditions; actual performance may vary depending on operating conditions.
| Engine | |
|---|---|
| Model | SHIBAURA E440C |
| Type | Air cooled 2-stroke gasoline engine |
| Cooling system | Air cooled type |
| No of cylinder | 2 cylinder |
| Fuel system | Auto choke carburetor |
| Displacement | 436 cc 26.6 cu in |
| Bore x Stroke | 68 mm x 60 mm 2.68 x 2.36 in |
| Max output | 46 HP / 34 kW |
| Rated output | 30.6 hp 22.8 kW / 31 PS |
| Starting | Electric starter & manual starter |
| Fuel tank capacity | 3.83 gal 14.5 L |
| Fuel Consumption | 3.7 gal/h 14.0 L/h |
| Fuel type | Regular unleaded gasoline |
| Vacuum Pump | |
|---|---|
| Type | 4-Vane eccentric rotary type |
| Blade type | High strength carbon |
| Maximum suction height | 29.5 ft 9 m |
| Features | |
|---|---|
| Shibaura Original 2 cycle Gasoline Engine | Yes |
| Shibaura Original Centrifugal Pump | Yes |
| Shibaura Original Vacuum Pump | Yes |
| Alert Monitoring System | Yes |
| Quick Discharge Valve | Yes |
