P572S-A
Highest discharge performance of our lineup
High-output fire pump built for demanding operations and rapid priming.
Cooling system
Water-cooled
Pump model
Shibaura P572
Engine type
2-stroke gasoline engine
Max pressure
145 PSI (1.0 MPa)
Priming performance
1 m : 2.1 sec
Discharge performance
436 GPM @ 72.5 PSI 291 GPM @ 145 PSI
Compare this model within the water-cooled pumps and review the related operational scenario page as part of your selection process.

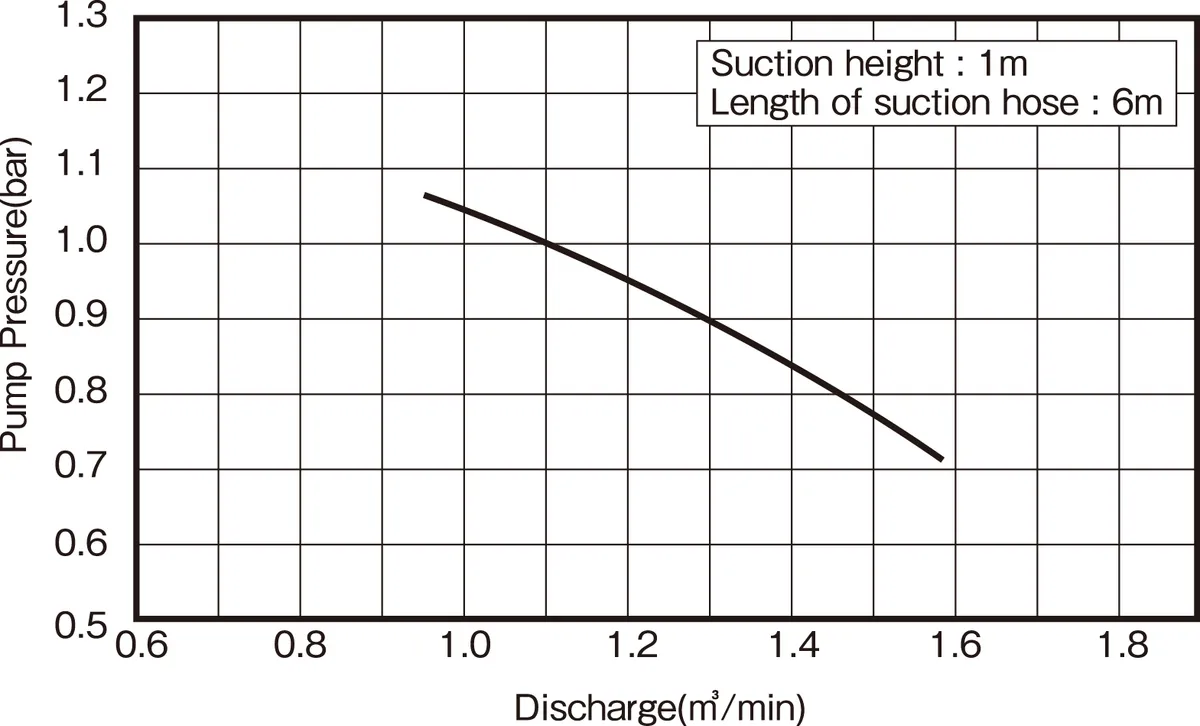

Performance Curve

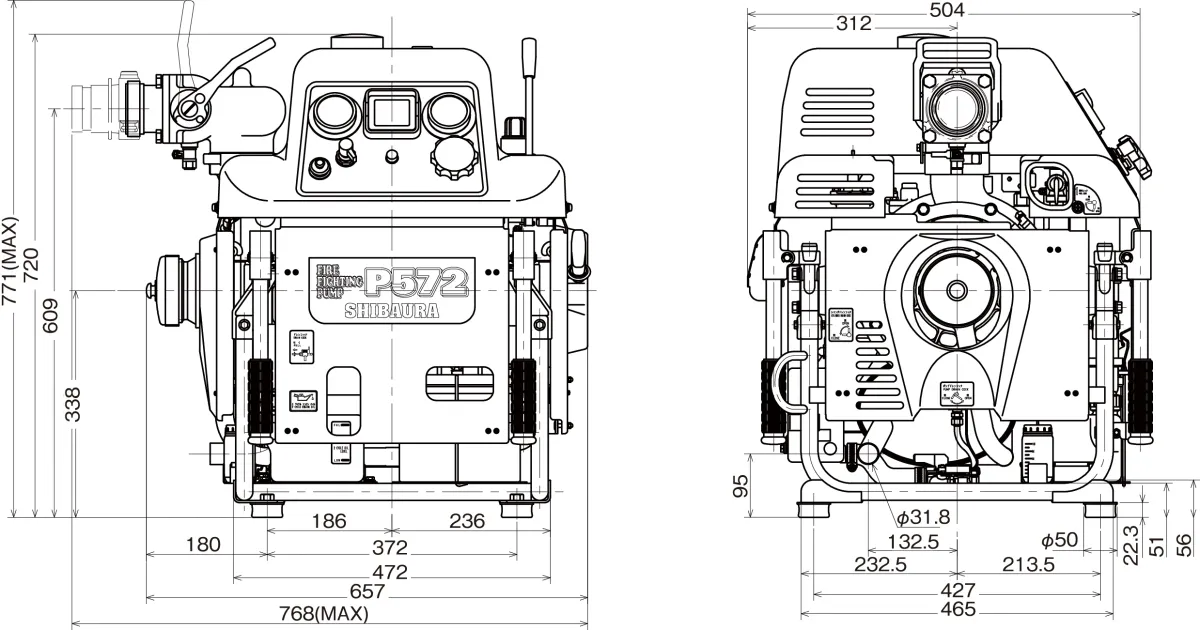

Dimensions
P572S-A Pump Operation
See the P572S-A in action with a full pump operation walkthrough.
Technical Specifications
The specifications procurement teams need to evaluate the P572S-A.
| P572S-A | |
|---|---|
| Overall Dimensions (L × W × H) | 26 x 23 x 28 in 657 x 584 x 720 mm |
| Dry Weight | 207 lb 94 kg |
| Pump | ||
|---|---|---|
| Model | SHIBAURA P572 | |
| Type | High pressure, single stage centrifugal pump | |
| Maximum Discharge
Performance *Independent test | 58 psi (0.4 MPa)
| 590 gpm @ 58 psi 2,233 L/min |
| 87 psi (0.6 MPa)
| 630 gpm @ 87 psi 2,385 L/min | |
| 116 psi (0.8 MPa)
| 500 gpm @ 116 psi 1,893 L/min | |
| 145 psi (1.0 MPa)
| 390 gpm @ 145 psi 1,476 L/min | |
| Discharge Performance Manufacturer standard | 72.5 psi (0.5 MPa)
1 m suction head (3.3 ft) | 436 gpm @ 72.5 psi 1,650 L/min |
| 101.5 psi (0.7 MPa)
1 m suction head (3.3 ft) | 423 gpm @ 101.5 psi 1,600 L/min | |
| 145 psi (1.0 MPa)
1 m suction head (3.3 ft) | 291 gpm @ 145 psi 1,100 L/min | |
| 145 psi (1.0 MPa)
3 m suction head (9.8 ft) | 283 gpm @ 145 psi 1,070 L/min | |
| Priming performance at 1 m | 2.1 Seconds 2.1 Seconds (3.3 ft suction head) | |
| Discharge Diameter | 2.5 in NH | |
| Suction Diameter | 4 in NH | |
*Performance values represent maximum output under standard factory test conditions; actual performance may vary depending on operating conditions.
| Engine | |
|---|---|
| Model | SHIBAURA EP572 |
| Type | Water cooled 2-stroke gasoline engine |
| Cooling system | Water cooled type |
| No of cylinder | 2 cylinder |
| Fuel system | Auto choke carburetor |
| Displacement | 723 cc 44.1 cu in |
| Bore x Stroke | 80 mm x 72 mm 3.15 x 2.83 in |
| Rated output | 45.3 hp 34.3 kW / 46 PS |
| Starting | Electric starter & manual starter |
| Fuel tank capacity | 3.17 gal 12.0 L |
| Fuel Consumption | 4.62 gal/h 17.5 L/h |
| Fuel type | Regular unleaded gasoline |
| Vacuum Pump | |
|---|---|
| Type | 4-Vane eccentric rotary type |
| Blade type | High strength carbon |
| Maximum suction height | 29.5 ft 9 m |
| Features | |
|---|---|
| Shibaura Original 2 cycle Gasoline Engine | Yes |
| Shibaura Original Centrifugal Pump | Yes |
| Shibaura Original Vacuum Pump | Yes |
| Alert Monitoring System | Yes |
| Quick Discharge Valve | Yes |
This model is especially relevant for relay layouts and sustained water-transfer operations.
