FF500AR-A
Auto Relay for long-distance water delivery
Auto-relay pump for long-distance water delivery and efficient operations.
Cooling system
Water-cooled
Pump model
Shibaura P556
Engine type
2-stroke gasoline engine
Max pressure
145 PSI (1.0 MPa)
Priming performance
1 m : 2.2 sec
Discharge performance
409 GPM @ 72.5 PSI 259 GPM @ 145 PSI
Compare this model within the water-cooled pumps and review the related operational scenario page as part of your selection process.

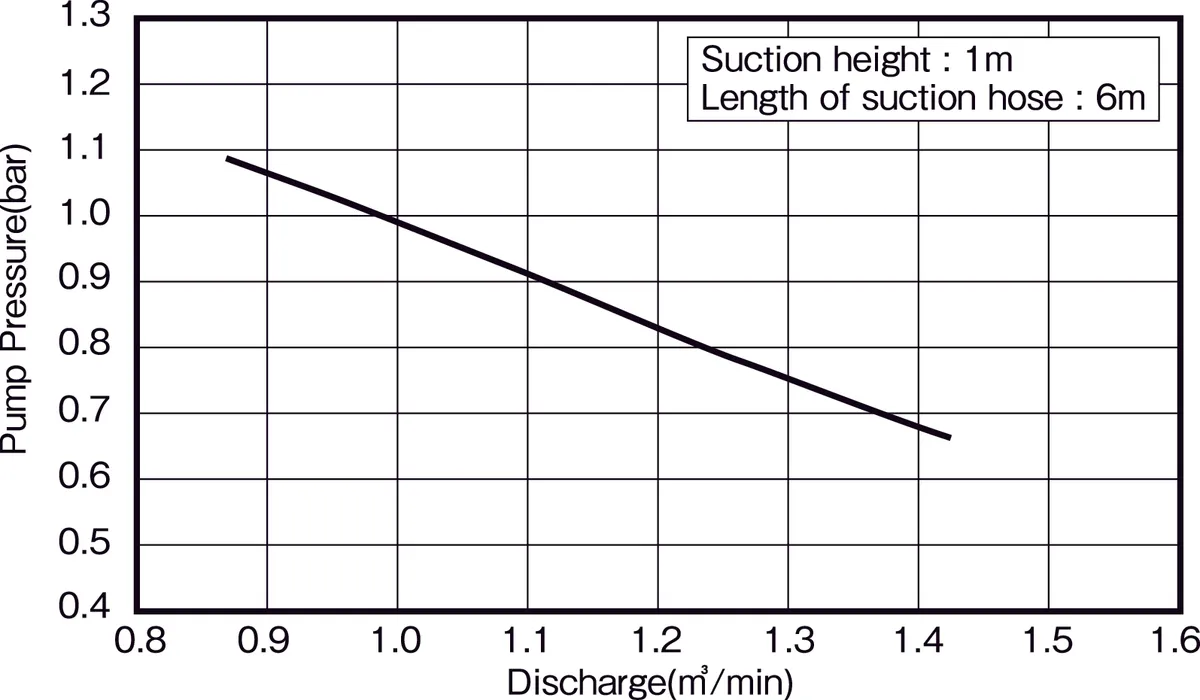

Performance Curve

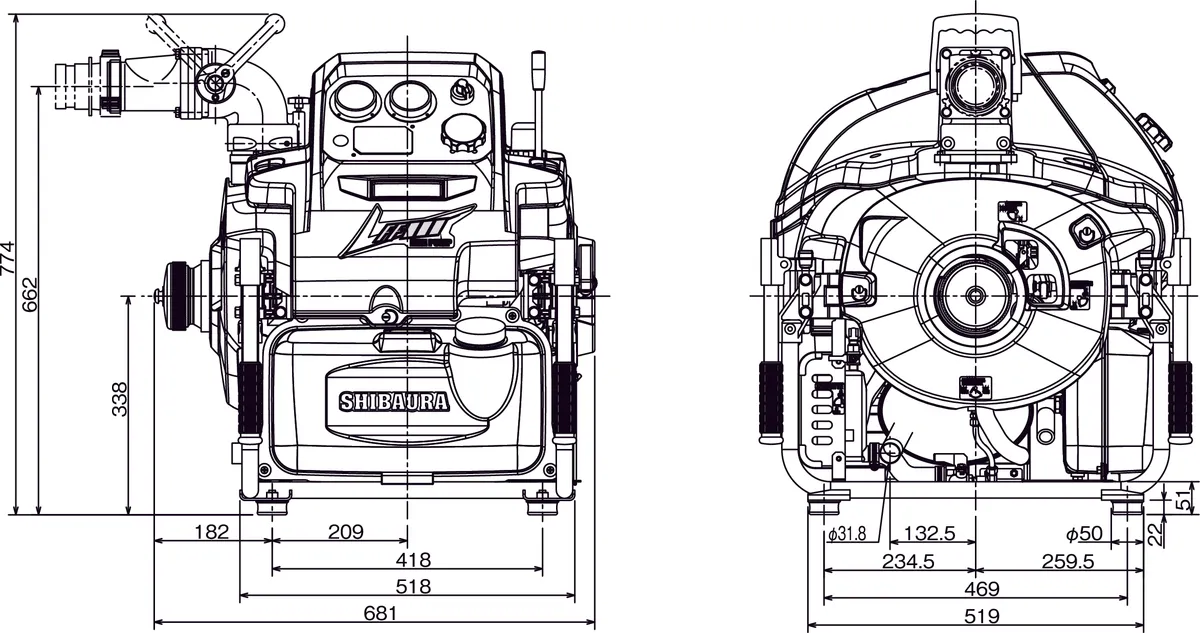

Dimensions
FF500-AR Pump Operation
Watch the FF500-AR running through a complete pump operation demo.
Technical Specifications
The specifications procurement teams need to evaluate the FF500AR-A.
| FF500AR-A | |
|---|---|
| Overall Dimensions (L × W × H) | 27 x 25 x 30.5 in 681 x 639 x 774 mm |
| Dry Weight | 216 lb 98 kg |
| Pump | ||
|---|---|---|
| Model | SHIBAURA P556 | |
| Type | High pressure, single stage centrifugal pump | |
| Discharge Performance | 72.5 psi (0.5 MPa)
1 m suction head (3.3 ft) | 409 gpm @ 72.5 psi, 3.3 ft 1,550 L/min |
| 101.5 psi (0.7 MPa)
3 m suction head (9.8 ft) | 349 gpm @ 101.5 psi, 9.8 ft 1,320 L/min (0.7MPa) | |
| 145 psi (1.0 MPa)
1 m suction head (3.3 ft) | 259 gpm @ 145 psi, 3.3 ft 980 L/min | |
| 145 psi (1.0 MPa)
3 m suction head (9.8 ft) | 254 gpm @ 145 psi, 9.8 ft 960 L/min | |
| Priming performance at 1 m | 2.2 Seconds 2.2 Seconds (3.3 ft suction head) | |
| Discharge Diameter | 65 mm (JIS) | |
| Suction Diameter | 75 mm (JIS) | |
| Engine | |
|---|---|
| Model | SHIBAURA EP556 |
| Type | Water cooled 2-stroke gasoline engine |
| Cooling system | Water cooled type |
| No of cylinder | 2 cylinder |
| Fuel system | Electronic control fuel injection |
| Displacement | 635 cc 38.8 cu in |
| Bore x Stroke | 76 mm x 70 mm 2.99 x 2.76 in |
| Rated output | 42.4 hp 32.0 kW / 43 PS |
| Starting | Electric starter & manual starter |
| Fuel tank capacity | 2.91 gal 11.0 L |
| Fuel Consumption | 4.49 gal/h 17.0 L/h |
| Fuel type | Regular unleaded gasoline |
| Vacuum Pump | |
|---|---|
| Type | 4-Vane eccentric rotary type |
| Blade type | High strength carbon |
| Maximum suction height | 29.5 ft 9 m |
| Features | |
|---|---|
| Shibaura Original 2 cycle Gasoline Engine | Yes |
| Shibaura Original Centrifugal Pump | Yes |
| Shibaura Original Vacuum Pump | Yes |
| Alert Monitoring System | Yes |
| Quick Discharge Valve | Yes |
This model is especially relevant for relay layouts and sustained water-transfer operations.
